Lever Hoist
The ALR Lever Hoist is a compact and robust manual lifting device designed for lifting, pulling, tensioning, and positioning loads in demanding industrial environments. Operated by a hand lever mechanism, the hoist provides precise load control and is ideal for applications where loads must be lifted or pulled in any orientation. A free-wheel mechanism allows the load chain to be quickly adjusted when the hoist is not under load, enabling rapid take-up of slack chain and faster positioning before lifting begins.
Key Features
Versatile Lifting and Pulling - Suitable for vertical lifting, horizontal pulling, and load positioning applications.
Robust Steel Construction - Designed for durability in demanding industrial environments.
Twin Pawl Brake System - Provides enhanced safety and reliable load holding during operation.
Light Load Capability - Tested and certified to operate safely at 2% light loads relative to rated capacity.
High-Strength Load Chain - Manufactured to international standards for durability and wear resistance.
Heavy-Duty Safety Hooks - Top and bottom hooks fitted with integrated safety latches for secure load attachment.
Optional Overload Protection - Load limiter options available for enhanced operational safety.
Typical Applications
Pulling, lifting, or tensioning loads in construction and infrastructure projects
Maintenance and installation of machinery and equipment
Rigging and positioning tasks in fabrication and engineering workshops
Utilities, shipyard, and offshore lifting operations
Applications requiring portable lifting equipment
Standards & Performance

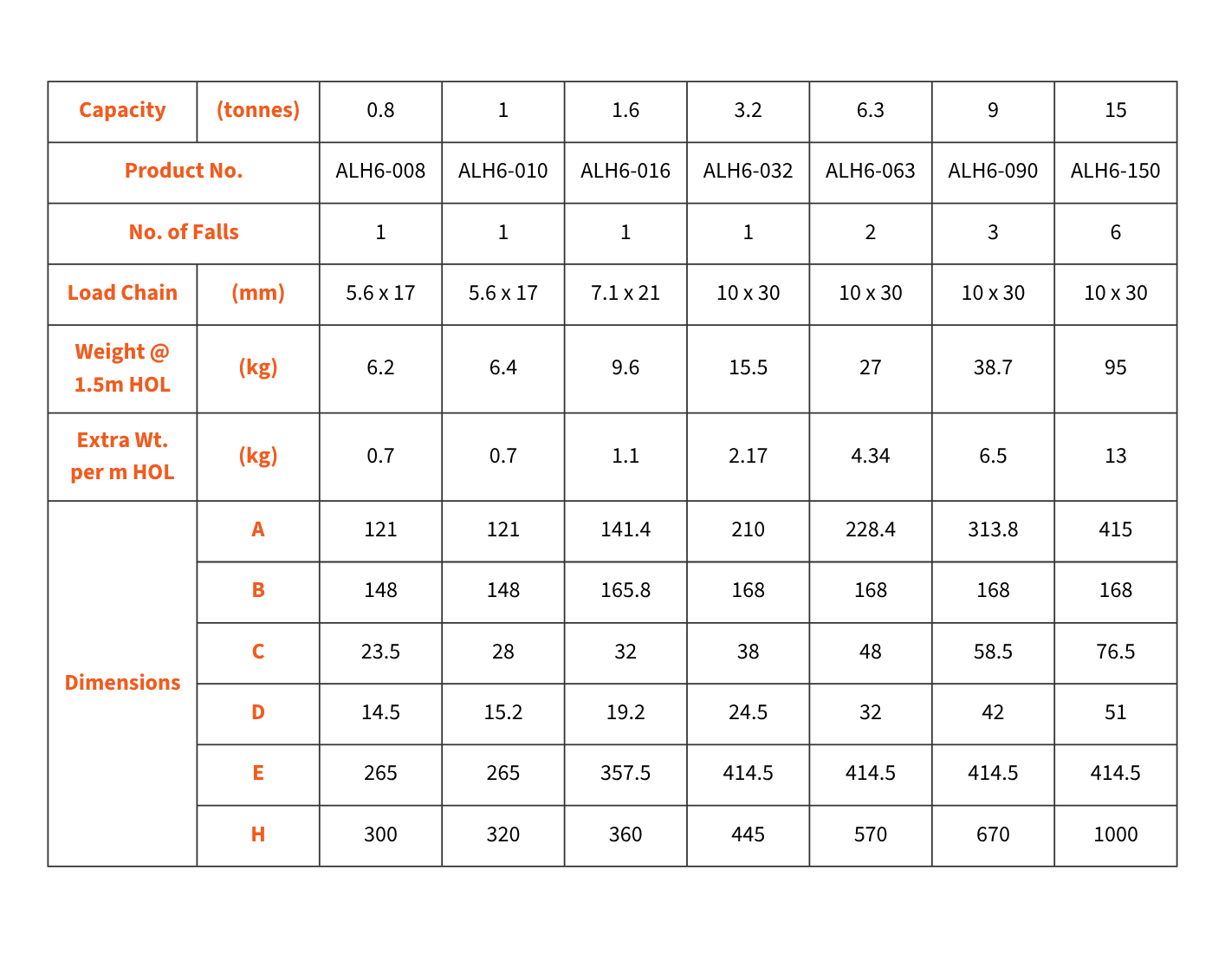

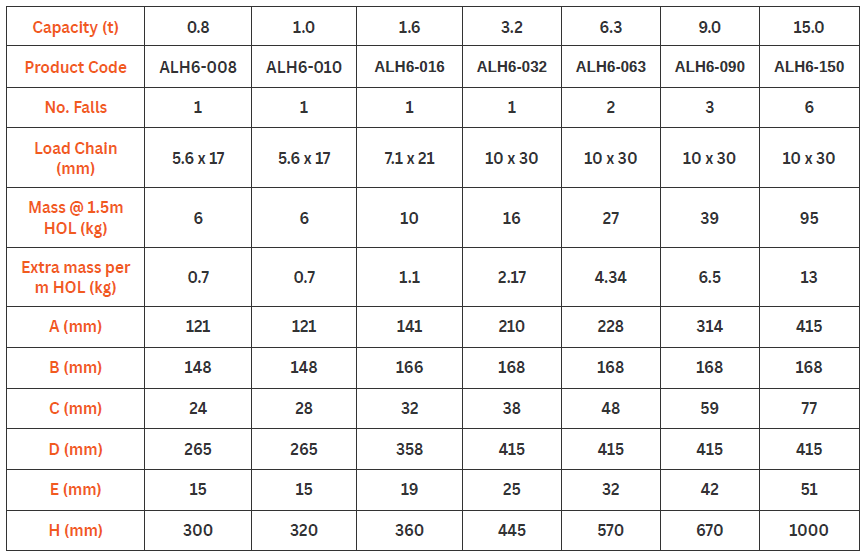

Working Load Limit range: 800 kg to 15 tonnes.
Proof load tested: 1.5 × WLL.
Safety factor: 4:1.
Light load tested: certified at approximately 2% of rated capacity.
Operating temperature range: approximately -20 °C to +120 °C.
Designed to meet relevant standards such as BS EN 13157 and other international lifting equipment standards.
