The ALR Geared Trolley provides controlled horizontal movement of lifting equipment along an overhead beam or runway beam. Designed for use with manual or powered hoists, the trolley enables precise positioning of loads by means of a hand chain drive mechanism, making it ideal where accurate load placement is required or where the trolley is positioned out of reach.
Geared Trolleys
Key Features
Geared Travel Mechanism - Hand chain drive enables controlled and precise positioning of loads along the beam.
Adjustable Beam Width - Spacer arrangement allows the trolley to be configured for a wide range of beam flange sizes.
Twin-Bar Suspension Design - Provides improved stability during operation.
Precision-Machined Trolley Wheels - Wheels rotate on sealed ball bearings for smooth movement and long service life.
Anti-Tilt Safety Feature - Helps prevent accidental disengagement from the beam.
Rubber End Stops - Reduce the risk of damage to the trolley and beam during travel.
Large Suspension Eye - Accommodates a wide range of hoist hooks and lifting attachments.
Suspending manual chain blocks or lever hoists from overhead beams
Accurate positioning of loads along gantry or runway beams
Workshop lifting systems and maintenance operations
Construction, fabrication, and heavy industry lifting tasks
Applications where the trolley must be operated from ground level
Typical Applications

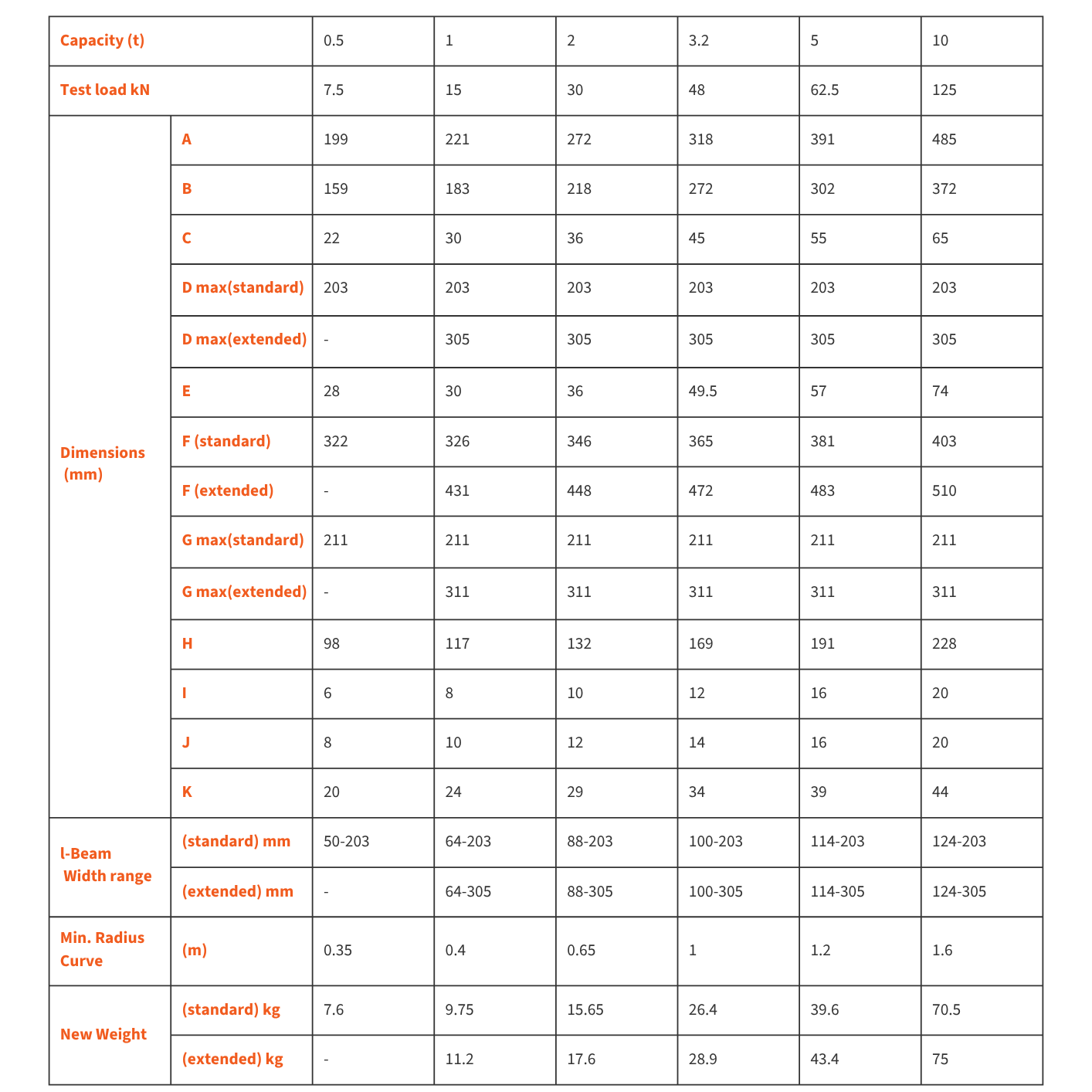

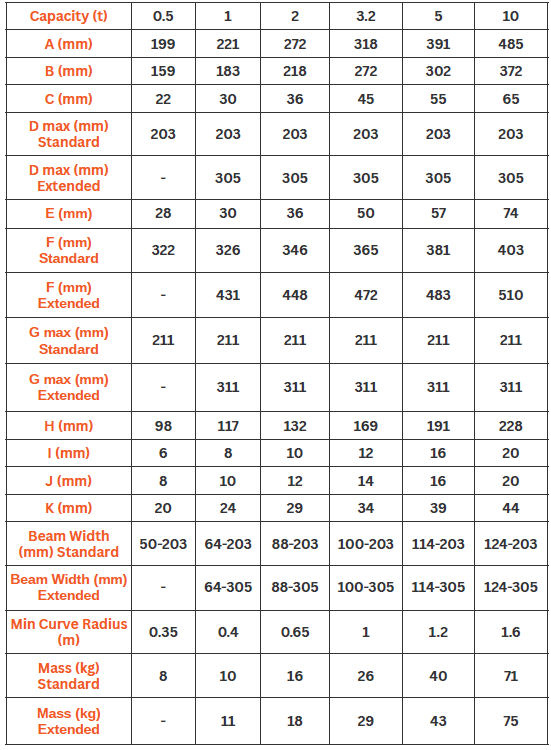

Standards & Performance
Working Load Limit range: typically 500 kg to 10 tonnes depending on model.
Proof load tested: 1.5 × WLL.
Safety factor: 4:1.
Operating temperature range: approximately -20 °C to +120 °C.
Manufactured in accordance with BS EN 13157 requirements for manual lifting equipment.
